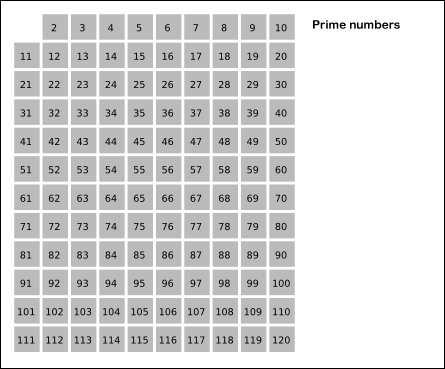

SIEVE OF ERATOSTHENES

Shubham Sand

Varun Shrivastav

Saket Thakare

PERFORMANCE TESTING

#include <chrono>

auto start = high_resolution_clock::now();
eratosthenes(n);
auto stop = high_resolution_clock::now();
auto duration = duration_cast<microseconds>(stop - start);
cout << duration.count();

TIME ANALYSIS

for run in {1..100}
do
  sum=$(($sum + $(./a.out 8000000) ))
done
echo "Avg time : $((sum / 100)) microseconds"

AVERAGE TIME

int eratosthenes(int lastNumber)
{
    int found = 0;
    bool isPrime[lastNumber + 1];

    // Initialize
    for (int i = 0; i <= lastNumber; i++)
        isPrime[i] = true;

    // Find all non-primes
    for (int i = 2; i * i <= lastNumber; i++)
        if (isPrime[i])
            for (int j = i * i; j <= lastNumber; j += i)
                isPrime[j] = false;

    // Count prime numbers
    for (int i = 2; i <= lastNumber; i++)
        if(isPrime[i])
            found++;

    return found;
}

BASE ALGORITHM

EXECUTION TIME

140195

in microseconds

2x Core

4x Core

133921

8x Core

133921

int eratosthenes(int lastNumber)
{
    int found = 0;

    // Initialize
    char *isPrime = new char[lastNumber + 1];
    for (int i = 0; i <= lastNumber; i++)
        isPrime[i] = 1;

    // Find all non-primes
    for (int i = 2; i * i <= lastNumber; i++)
        if (isPrime[i])
            for (int j = i * i; j <= lastNumber; j += i)
                isPrime[j] = 0;

    // Count prime numbers
    for (int i = 2; i <= lastNumber; i++)
        found += isPrime[i];

    delete[] isPrime;
    return found;
}

IMPROVEMENT #1

EXECUTION TIME

128694

in microseconds

116906

116059

2x Core

4x Core

8x Core

~ 12.7% Gain

Replacing bool array with char array

int eratosthenes(int lastNumber)
{
    int memorySize = (lastNumber - 1) / 2;
    int found = lastNumber >= 2 ? 1 : 0;
    char *isPrime = new char[memorySize + 1];

    // Initialize
    for (int i = 0; i <= memorySize; i++)
        isPrime[i] = 1;

    // Find all odd non-primes
    for (int i = 3; i * i <= lastNumber; i += 2)
        if (isPrime[i / 2])
            for (int j = i * i; j <= lastNumber; j += 2 * i)
                isPrime[j / 2] = 0;

    // Count prime numbers
    for (int i = 1; i <= memorySize; i++)
        found += isPrime[i];

    delete[] isPrime;
    return found;
}

IMPROVEMENT #2

EXECUTION TIME

50573

in microseconds

50707

50390

2x Core

4x Core

8x Core

~ 60.7% Gain

Process only odd numbers

int eratosthenes(int lastNumber)
{
  omp_set_num_threads(omp_get_num_procs());
  const Number lastNumberSqrt = (int)sqrt((double)lastNumber);
  Number memorySize = (lastNumber-1)/2;
  char* isPrime = new char[memorySize+1];
  int found = lastNumber >= 2 ? 1 : 0;

  #pragma omp parallel for
    for (Number i = 0; i <= memorySize; i++)
      isPrime[i] = 1;

  #pragma omp parallel for
    for (Number i = 3; i <= lastNumberSqrt; i += 2)
      if (isPrime[i/2])
        for (Number j = i*i; j <= lastNumber; j += 2*i)
          isPrime[j/2] = 0;

  #pragma omp parallel for
    for (Number i = 1; i <= memorySize; i++)
      found += isPrime[i];

  return found;
}

IMPROVEMENT #3

EXECUTION TIME

55968

in microseconds

83759

92897

2x Core

4x Core

8x Core

~ 53.6% Loss

Parallelizing the code

int eratosthenes(int lastNumber)
{
  omp_set_num_threads(omp_get_num_procs());
  const Number lastNumberSqrt = (int)sqrt((double)lastNumber);
  Number memorySize = (lastNumber-1)/2;
  char* isPrime = new char[memorySize+1];
  int found = lastNumber >= 2 ? 1 : 0;

  #pragma omp parallel for
    for (Number i = 0; i <= memorySize; i++)
      isPrime[i] = 1;

  // find all odd non-primes
  #pragma omp parallel for schedule(auto)
    for (Number i = 3; i <= lastNumberSqrt; i += 2)
      if (isPrime[i/2])
        for (Number j = i*i; j <= lastNumber; j += 2*i)
          isPrime[j/2] = 0;

  #pragma omp parallel for
    for (Number i = 1; i <= memorySize; i++)
      found += isPrime[i];

  return found;
}

IMPROVEMENT #4

EXECUTION TIME

56288

in microseconds

97930

102815

2x Core

4x Core

8x Core

~ 9.3% Loss

Scheduling the find-all for loop in auto mode

int eratosthenes(int lastNumber)
{
  omp_set_num_threads(omp_get_num_procs());
  const Number lastNumberSqrt = (int)sqrt((double)lastNumber);
  Number memorySize = (lastNumber-1)/2;
  char* isPrime = new char[memorySize+1];
  int found = lastNumber >= 2 ? 1 : 0;

  #pragma omp parallel for
    for (Number i = 0; i <= memorySize; i++)
      isPrime[i] = 1;

  // find all odd non-primes
  #pragma omp parallel for schedule(static)
    for (Number i = 3; i <= lastNumberSqrt; i += 2)
      if (isPrime[i/2])
        for (Number j = i*i; j <= lastNumber; j += 2*i)
          isPrime[j/2] = 0;

  #pragma omp parallel for
    for (Number i = 1; i <= memorySize; i++)
      found += isPrime[i];

  return found;
}

IMPROVEMENT #5

EXECUTION TIME

56520

in microseconds

98560

102232

2x Core

4x Core

8x Core

~ 0.173% Loss

Scheduling the find-all for loop in static mode

int eratosthenes(int lastNumber)
{
  omp_set_num_threads(omp_get_num_procs());
  const Number lastNumberSqrt = (int)sqrt((double)lastNumber);
  Number memorySize = (lastNumber-1)/2;
  char* isPrime = new char[memorySize+1];
  int found = lastNumber >= 2 ? 1 : 0;

  #pragma omp parallel for
    for (Number i = 0; i <= memorySize; i++)
      isPrime[i] = 1;

  // find all odd non-primes
  #pragma omp parallel for schedule(dynamic)
    for (Number i = 3; i <= lastNumberSqrt; i += 2)
      if (isPrime[i/2])
        for (Number j = i*i; j <= lastNumber; j += 2*i)
          isPrime[j/2] = 0;

  #pragma omp parallel for
    for (Number i = 1; i <= memorySize; i++)
      found += isPrime[i];

  return found;
}

IMPROVEMENT #6

EXECUTION TIME

48424

in microseconds

86776

88029

2x Core

4x Core

8x Core

~ 13.3% Gain

Scheduling the find-all for loop in dynamic mode

int eratosthenes(int lastNumber)
{
  omp_set_num_threads(omp_get_num_procs());
  const Number lastNumberSqrt = (int)sqrt((double)lastNumber);
  Number memorySize = (lastNumber-1)/2;
  char* isPrime = new char[memorySize+1];
  int found = lastNumber >= 2 ? 1 : 0;

  #pragma omp parallel for
    for (Number i = 0; i <= memorySize; i++)
      isPrime[i] = 1;

  // find all odd non-primes
  #pragma omp parallel for schedule(dynamic)
    for (Number i = 3; i <= lastNumberSqrt; i += 2)
      if (isPrime[i/2])
        for (Number j = i*i; j <= lastNumber; j += 2*i)
          isPrime[j/2] = 0;

  #pragma omp parallel for reduction(+:found)
    for (Number i = 1; i <= memorySize; i++)
      found += isPrime[i];

  return found;
}

IMPROVEMENT #7

EXECUTION TIME

34519

in microseconds

21600

14701

2x Core

4x Core

8x Core

~ 62.3% Gain

Adding reduction in prime count loop

int eratosthenes(int lastNumber, int sliceSize)
{
  int found = 0;
  for (int from = 2; from <= lastNumber; from += sliceSize)
  {
    int to = from + sliceSize;
    if (to > lastNumber)
      to = lastNumber;
    found += eratosthenesOddSingleBlock(from, to);
  }
  return found;
}

int eratosthenesOddSingleBlock(const int from, const int to)
{
    const int memorySize = (to - from + 1) / 2;
    char* isPrime = new char[memorySize];
    for (int i = 0; i < memorySize; i++)
        isPrime[i] = 1;
    for (int i = 3; i*i <= to; i+=2)
    {
        int minJ = ((from+i-1)/i)*i;
        if (minJ < i*i)
            minJ = i*i;
        if ((minJ & 1) == 0)
            minJ += i;
        for (int j = minJ; j <= to; j += 2*i)
        {
            int index = j - from;
            isPrime[index/2] = 0;
        }
    }
    int found = 0;
    for (int i = 0; i < memorySize; i++)
        found += isPrime[i];
    if (from <= 2)
        found++;
    delete[] isPrime;
    return found;
}

IMPROVEMENT #8

EXECUTION TIME

47679

in microseconds

47430

47383

2x Core

4x Core

8x Core

~ 6.02% Gain

Computing block-wise

int eratosthenes(int lastNumber, int sliceSize)
{
  int found = 0;

  #pragma omp parallel for reduction(+:found)
  for (int from = 2; from <= lastNumber; from += sliceSize)
  {
    int to = from + sliceSize;
    if (to > lastNumber)
      to = lastNumber;
    found += eratosthenesOddSingleBlock(from, to);
  }

  return found;
}

IMPROVEMENT #9

EXECUTION TIME

33654

in microseconds

19692

14627

2x Core

4x Core

8x Core

~ 52.3% Gain

Parralizing block code

RESULTS

CPU BASE FINAL SPEED UP
x2 Core 140,195 33,654 4.16x
x4 Core 133,921 19,692 6.8x
x8 Core 132,514 14,627 9.05x

GRAPH
